  • 1.  Lamicoid plastic plate

    Posted 05-11-2023 09:45

    Hello,

    Would anyone know how to get that little notch at the top of the circle as per the attached image.

    Any help or suggestions would be greatly appreciated.

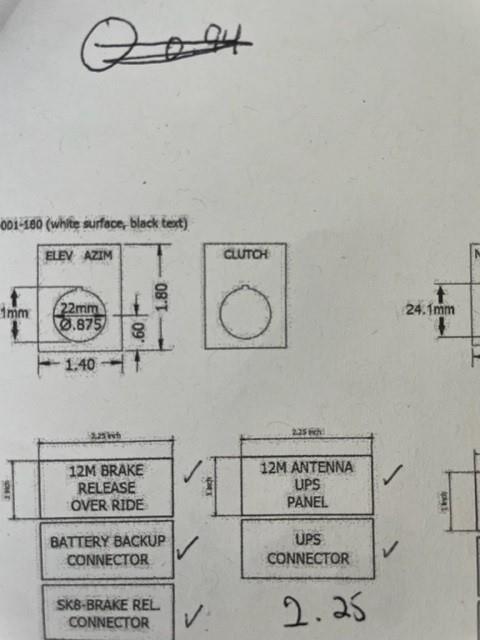

    It is the little tab on top of the circle with the Clutch title



    I use Corel draw.

    Thank you in advance :)

    Sherry Comeau
    Boutique C & S Promotions Inc.



    ------------------------------
    Sherry Comeau
    Boutique C & S Promotions Inc.
    Pincourt QC
    514.453.4004
    ------------------------------
    Netsoft Studio


  • 2.  RE: Lamicoid plastic plate

    Posted 05-11-2023 14:35

    make the circle, draw a square the size you need, position it in the space you need and then go to weld.  It will remove the part of the box inside the circle.We call them legend plates at our shop and that's how I learned to do it.  If that doesn't work just email me the dimensions and I can set it up for you.



    ------------------------------
    Patti Lash
    Budget Signs Trophies & Plaques
    Wood River IL
    618.259.4460
    ------------------------------

    Original Message
    Netsoft Studio


  • 3.  RE: Lamicoid plastic plate

    Posted 05-11-2023 15:11
      |   view attached

    Hello Patti,



    Nice to meet you albeit virtually��



    Thank you so much for helping me I really appreciate it!



    I have attached the information for the 4 legend plates that I require.



    It is the little tab on the circle that I am trying to make.



    I tried what you suggested however it did not work.



    Please let me know if you can help me.







    Merci!

    Nous vous remercions de votre confiance!



    Thank you!

    We appreciate your business!



    Sherry Comeau (Aanjii Gizhik Kwe)

    Boutique C & S Promotions Inc.

    215 Roberval

    Pincourt, Qc

    J7W 5H3

    T: 514.453.4004

    F: 514.453.0342

    www.boutiquecs.com

    https://www.mediaedgemagazines.com/the-canadian-council-for-aboriginal-business-ccab/cb222/














    Attachment(s)

    pdf
    Plastic legend plate.pdf   27 KB 1 version
    Original Message
    Netsoft Studio


  • 4.  RE: Lamicoid plastic plate

    Posted 05-12-2023 10:02
    Edited by Roy Brewer 05-12-2023 10:13
      |   view attached

    Sherry,

    I've attached a CorelDRAW file that will get you very close. But, the snippet you attached doesn't show the width of the square at the top; so, technically it won't be perfect.
    The steps might be
    1.  create a 22mm circle
    2.  create a square ( I used 2.4mm)
    3.  select both
    4.  press "C"  then "T"  (to center top)
    5.  select only the square
    6.  move it upward  2.1mm
    7. select both
    8. weld

    If Patti hasn't already offered,  I'd be glad to log onto your PC and walk you through it.    email me at  roy@engravingconcepts.com
    ------------------------------
    Roy Brewer roy@engravingconcepts.com
    Engraving Concepts
    Arlington TX
    817.460.8122
    ------------------------------

    Attachment(s)

    cdr
    tag.cdr   20 KB 1 version
